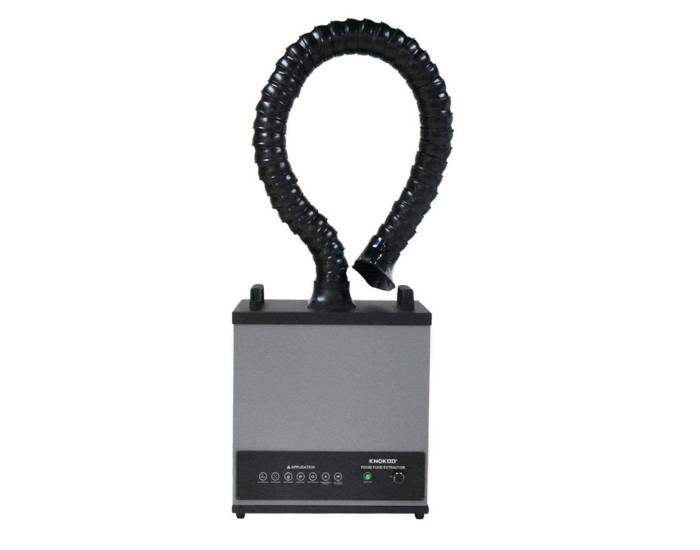

Soldering / Laser Fume Abstractor
- Model No.: TRX300
- Air Flow Capacity: 300 CFM
- Blower Type: Axial Fan / Radial Fan
- Primary Filter: HEPA / HDPE
- Cabinet: 16G Powder Coated
- Suction Inlet Diameter: 100 / 75 / 50mm, Flexible Hose Length 1.5 meters
- Control Panel: Inbuilt
- Power Consumption: 250W
- Power Supply (Phase): 1 Phase
- Noise Level: 40 – 60 dB
- Weight: Approximately 40 kgs.
- Overall Size (L x W x H) in mm: 435 x 400 x 450 MM
Description
As the fumes & smoke are captured effectively from the source of generation and then filtered with high efficiency, the system helps in complying with the requirements of pollution control norms.
- The air filtration efficiency is near about 99%
- effective capture of welding fumes, mists, and dusts from individual working stations
- Avoids spreading the fumes/particles all over the shop
- Efficient filtration of the fumes/mists / particles
- Cleaner, safer & thus more productive working environment
- Better compliance for pollution control
- Lower operating cost because of lower blower HP
